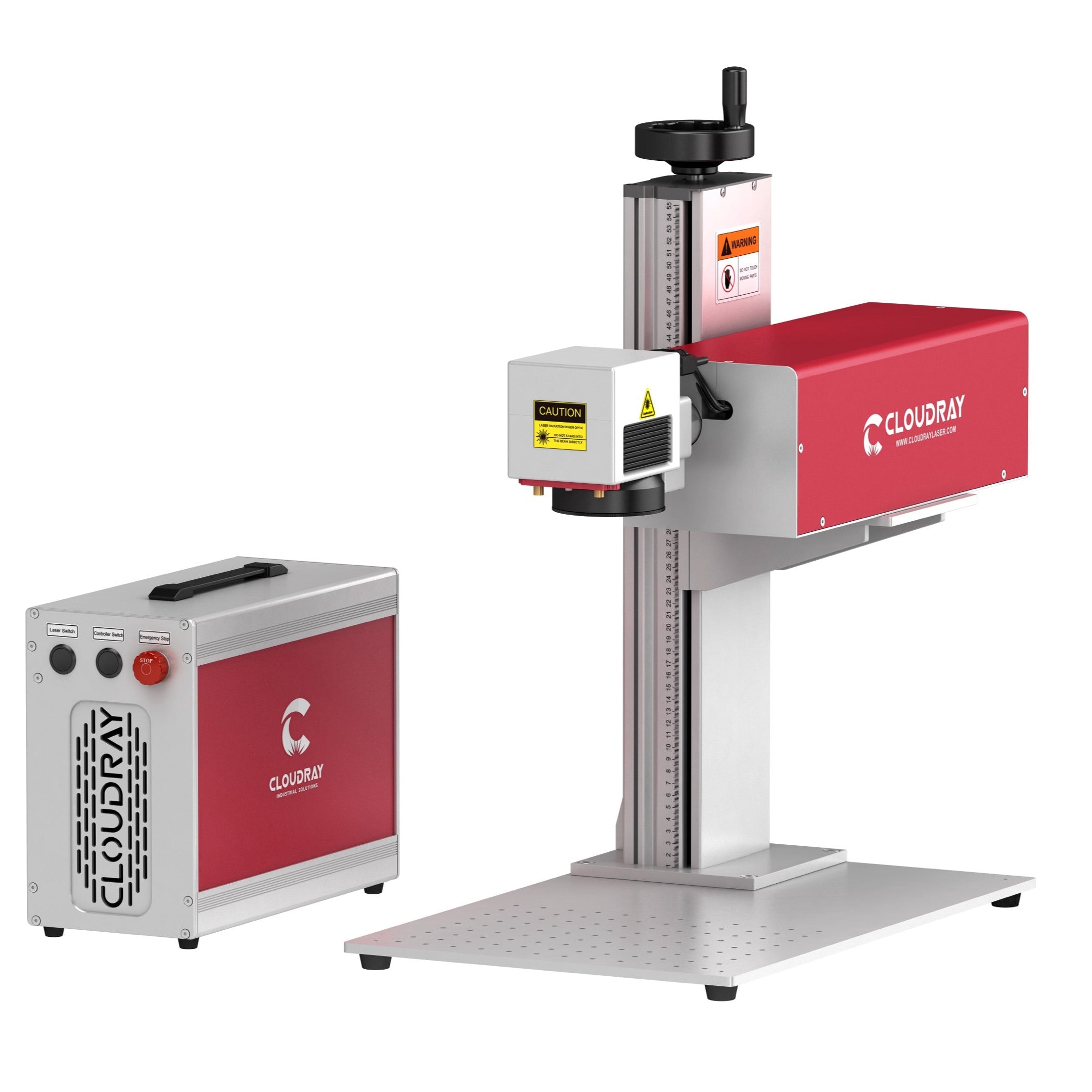

(USA Warehouse) Cloudray 10W UV Planar Laser Engraving Machine (Water Cooled)

SKU: FM14LMUVV1F10WU-USA
40
People are viewing this right now
Regular price $ 9,999.00 USD Sale price $ 6,999.00 USD

HURRY UP! SALE ENDS IN:

Shipping Destination: United States
Plug: American Plug
Add to Compare
Shipping calculated at checkout.
Dedicated Customer Support: US & EU Based Tech.
Laser Machine: 2-Year Warranty.
Laser engravers with FDA, CE, ROHS certifications, and QC quality inspection report.

Safe & secure

Frequently Bought Together

Cloudray UV-10 10W Water-Cooled High-stability & High Efficiency UV Laser Engraver
Cloudray Flexible Fixture
Rectangular Crystal | Cloudray Laser Marking & Engraving Materials Blank Crystal Blocks (4pcs)
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
This item: (USA Warehouse) Cloudray 10W UV Planar Laser Engraving Machine (Water Cooled)
Regular price $ 9,999.00 USD Sale price $ 6,999.00 USD
Cloudray Flexible Pin Fixture for Irregular Parts
Sale price $ 269.00 USD
Cloudray Blank Crystal Blocks for Laser Marking & Engraving
Sale price $ 65.00 USD
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
Sale price $ 199.00 USD
Cloudray UV-10 10W Water-Cooled High-stability & High Efficiency UV Laser Engraver

(USA Warehouse) Cloudray 10W UV Planar Laser Engraving Machine (Water Cooled)

Cloudray UV-10 Professional 10W UV & Water-Cooled Split-type Engraver | Cloudray UV-10 Engraver
Cloudray UV Laser Engraver Capabilities: Crystal Glass Internal Engraving, Reflective Metal Precision, Heat - Sensitive Material Safety & Paint Removal | Cloudray UV-10 Engraver
Split-type Professional Engraver, 2X better cooling than integrated design | Cloudray UV-10 Engraver
Cloudray Laser Engraver Advantages: Stable Power, Anti-Interference, 20000-Hour Lifespan, Easy Maintenance | Cloudray UV-10 Engraver
Industrial-Grade Water Cooling Maintains Stability During -15°c and 55°c of Operating Temperature,  with Superior Heat Dissipation, Extended Laser Lifespan, 24/7 Operation & Low Noise | Cloudray UV-10 Engraver
96x Increased Accuracy, 13 μm Focus Spot Diameter | Cloudray UV-10 Engraver
Power & Precision to Cut 10mm Basswood Effortlessly | Cloudray UV-10 Engraver
100% Non-destructive Marking, Cold Laser HAZ ≤ 5 μm | Cloudray UV-10 Engraver
Eco-Friendly & Clean Marking Process of UV Laser Marker, Featuring Zero Emissions & Contamination | Cloudray UV-10 Engraver
UV Laser's 355nm Wavelength Works on Almost All Materials, Covering Transparent, Heat-Sensitive, Reflective & More | Cloudray UV-10 Engraver
UV-10 Laser Applications in Various Materials & Industries, Including Marking, (Internal) Engraving & Cutting | Cloudray UV-10 Engraver
UV Lasers' Wide Applications in Electronics, Medical, Mold, Packaging, Glass, Jewelry & Other Industries | Cloudray UV-10 EngraverEngraver Packing List | Cloudray UV-10 Engraver

Specifications

Model UV-10
Laser 10W UV Laser
Wavelength 355 nm
Working Area 200 × 200 mm
Laser Frequency 40–200 kHz
Pulse Duration <15 ns @ 50 kHz
Beam Quality M² < 1.3
Max. Engraving Speed 15,000 mm/s
Positioning Accuracy ±0.1 μm
Beam Diameter (1/e²) 0.45 ± 0.15 mm
Built-in Beam Expander 10×
Min. Line Width 0.01 mm
Min. Character 0.1 mm
Software EZCAD2, LightBurn
Estimated Laser Service Life 20,000 hrs
Package Weight 48 kg
Package Size 97 × 55 × 48 cm
Power Consumption Max. 675 W
Supported Files .ai, .bmp, .dx, .dxf, .gif, .jpg
Ambient Conditions Operating Temperature: -15°C to 55°C
Equipment Protection IP54 (Marking Head)
IP20 (Laser Unit)
Power Requirements AC 220 V / 50 Hz or AC 110 V / 60 Hz
Warranty 2 Years for Machine
1 Year for Laser
Compatible Operating Systems Windows XP, Vista, 7, 8, 10, 11 / macOS

UV-10 vs UV-5

Model UV-10 UV-5
Laser 5W UV Laser
Design Type Integrated
Cooling Air Cooling
Built-in Beam Expander
Working Area 110 × 110 mm
Laser Frequency 10–150 kHz
Pulse Duration <12 ns @ 30 kHz
Beam Quality M² < 1.6
Beam Diameter (1/e²) 0.77 ± 0.1 mm
Basswood Cutting 8 mm
Supported Operating Temperature 10°C to 35°C
Thin Metal Cutting ×
Internal Engraving in Crystal Glass ×

UV Series UV-10 User Guide V1.1
User Manual
Download
USB Drive Files
Software & Tutorials Included
Download
UV-10 QC Report
Quality Report
Download
UV Series UV-10 Packing List
Packing List
Download
Water Chiller User Manual
User Manual
Download
FDA Certificate
Certification
Download
CE Certificate
Certification
Download

FAQs
QS Series: Smart Budget Option for Entry-Level Marking & Engraving. Up to 1mm engraving Depth.
MP Series: Professional-Grade Option. Enhanced Marking /Cutting Depth: Up to 5mm
GM Series: Advanced Performance for Industrial Use. 2.5D Deep Engraving +Precise Metal Cutting
UV Series: All-Material & Material-Friendly Engrvers. 3D Inner & Surface Engraving
EC Series: CO2 Precision Engraver for Non-metal Marking & Cutting
Please email us (info@cloudray.com) directly to offer us your working materials, along with the expected effect on those materials by machine, accompanied by pictures or videos.
Yes, they are different. Official website and Cloudray stores on shopping platforms(Amazon/Ebay /Aliexpress etc.) are different teams with different machine configurations and offers.
1. We are the Official website, and different from cloudray stores on platforms, we don't need to pay extra transaction fees and commissions to shopping platforms, that's why our offer is more affordable even with higher configurations. And We only offer lifetime tech support and marking/engraving parameters, free materials for orders directly on www.cloudraylaser.com, not adapted to any orders from other sales channels.
2. Different Machine Types and Configurations. The laser machines will be equipped with unique configurations (only for machines on www.cloudraylaser.com) which have high stability and marking efficiency. Support Customization of your laser machine and upgrading solutions if needed.
3. Customer Service Support We can only offer after-sale service for customers ordered on www.cloudraylaser.com, not responsible for orders from shopping platforms as we don't have your order information in our system. Please contact the store on platforms to get related support in time.
4. Official Loyal Customers BenefitsWe will run the free trial campaign from time to time for loyal customers who directly ordered on www.cloudraylser.com, not adapted to customers from other sales channels. Also, we offer free gifts for customers who ordered during grand festivals.
All product information, policies, and extra offers published on the website are only adapted to orders on www.cloudraylaser.com, and not adapted to stores on shopping platforms.
The maximum marking speed of Cloudray galvanometer system is 15,000 mm/s.
Cloudray recommends a common marking speed range of 2,000 to 5,000 mm/s, which enables high-quality marking for 1mm characters.
Typically, the maximum marking speed can reach the highest positioning speed of the galvanometer, depending on the engraver's specifications.
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients’ feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality faults. Even if the machine is beyond the warranty, we can still offer technical assistance as your order is placed on www.cloudraylaser.com.
